# How I Found “CVE-2025–4123” in Grafana Using FOFA (and Got a Bounty

بسم الله والصلاة والسلام على نبينا المجاهد الشهيد

Hello Hunters! I’m Abdelrahman (A0xtrojan), and I’m excited to share my write-up with you, found in a private program on in intigriti. So, without wasting time, let’s dive right in.

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/0*xnkzVSCGlKCb8UkW.jpg" alt="" height="604" width="700"><figcaption></figcaption></figure>

One day while researching on FOFA, I came across a newly published CVE affecting Grafana: **CVE-2025–4123**. The issue chains a client-side **Path Traversal** with an **Open Redirect**, enabling **stored XSS** — and in certain configurations (for example, when the Image Renderer plugin is present) the chain can escalate to **SSRF**.

<figure><img src="https://miro.medium.com/v2/resize:fit:840/0*JGXF0RO_iGHx180I.jpg" alt="" height="336" width="560"><figcaption></figcaption></figure>

References\
[https://nightbloodz.github.io/grafana-CVE-2025-4123/](https://www.linkedin.com/safety/go?url=https%3A%2F%2Fnightbloodz.github.io%2Fgrafana-CVE-2025-4123%2F\&trk=flagship-messaging-web\&messageThreadUrn=urn%3Ali%3AmessagingThread%3A2-MTEzOGM3NjUtYWNkOC00MDNjLTgzNjUtMGYwMTgyYTFmNTNlXzEwMA%3D%3D)

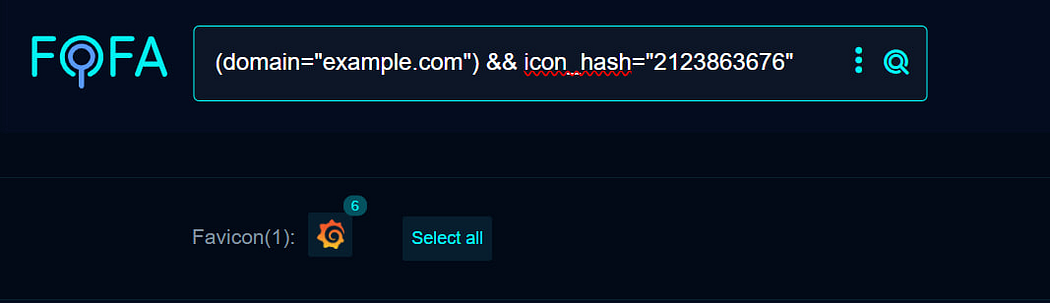

Then I went to FOFA and ran my query to hunt for that Grafana instance:

```
domain="example.com" && icon_hash="2123863676"
OR
Host="example.com" && icon_hash="2123863676"
```

This query looks for hosts under `example.com` that use the specific Grafana icon hash `2123863676`, helping me quickly locate potentially vulnerable panels.

Press enter or click to view image in full size

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*Xs5OLbI3zbiKBWxuLxIwvg.png" alt="" height="203" width="700"><figcaption></figcaption></figure>

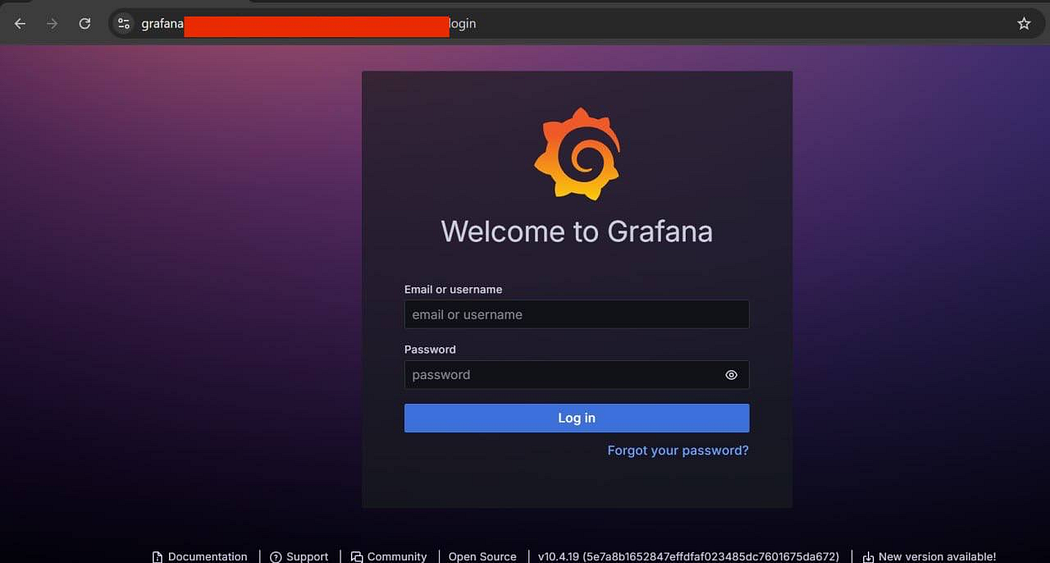

I navigated to one of the Grafana dashboards returned by my FOFA query and manually tested the panel.

Press enter or click to view image in full size

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*syzF5FAvWGE0_JxxSGAmvA.png" alt="" height="376" width="700"><figcaption></figcaption></figure>

<figure><img src="https://miro.medium.com/v2/resize:fit:720/0*kOvSTQ3yE3_ScAm9.jpg" alt="" height="480" width="480"><figcaption></figcaption></figure>

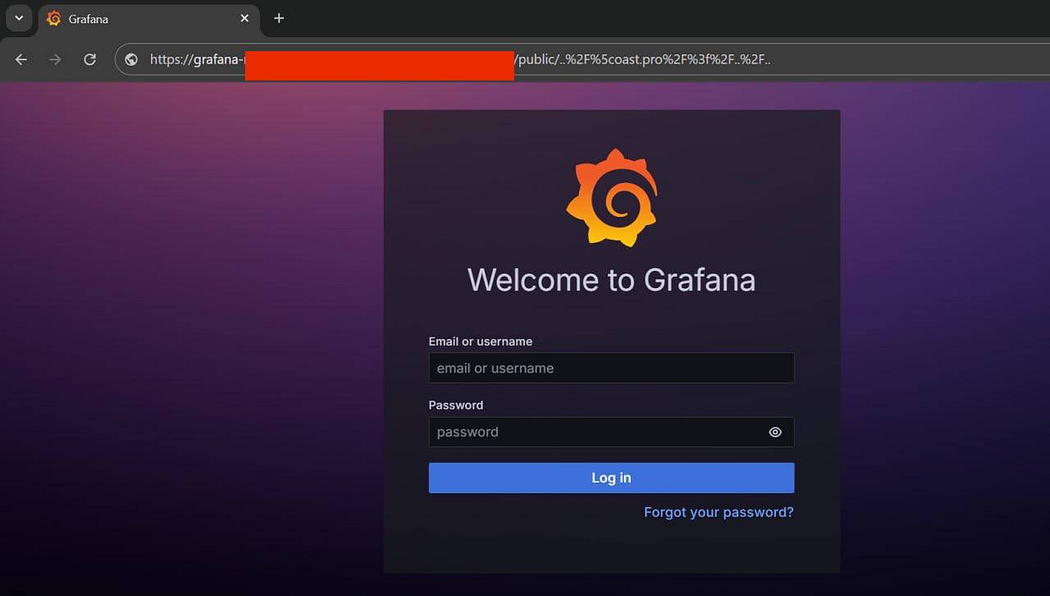

First, I injected the following path into the vulnerable panel:

```
/public/..%2F%5coast.pro%2F%3f%2F..%2F..
```

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*HPyFUebzjB3eB8HQeywnLA.png" alt="" height="398" width="700"><figcaption></figcaption></figure>

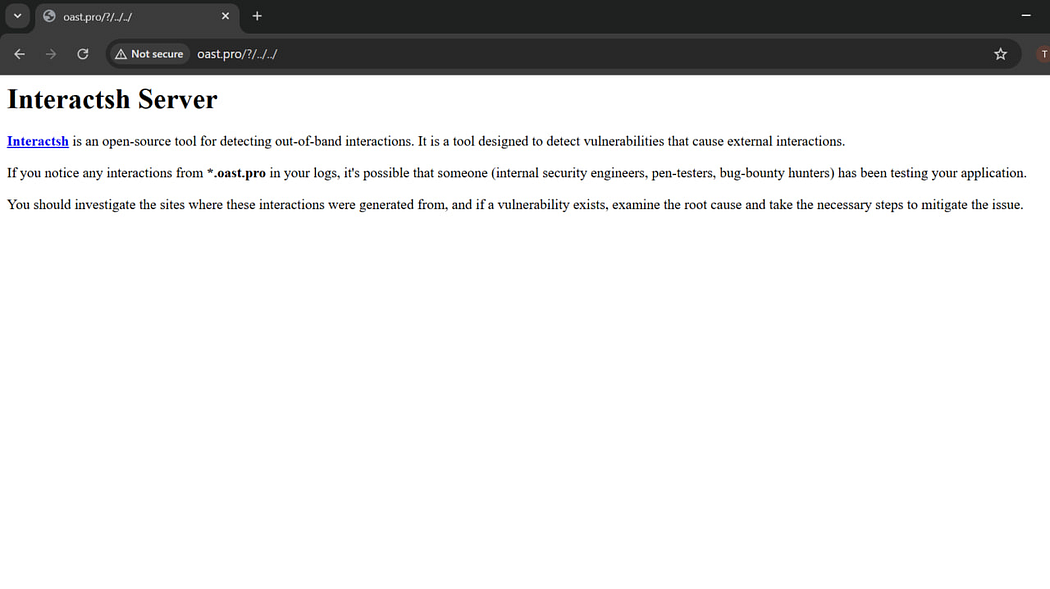

This encoded payload performs a client-side path traversal and redirects to `oast.pro`, allowing me to store the malicious input in the dashboard and confirm the reflected/stored behaviour.

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*SmN8Uuzh3XPUbCY_rCfKHg.png" alt="" height="393" width="700"><figcaption></figcaption></figure>

I attempted to escalate the chain into a higher-impact exploit (stored XSS / SSRF), but in my tests it only reliably resulted in an open redirect.

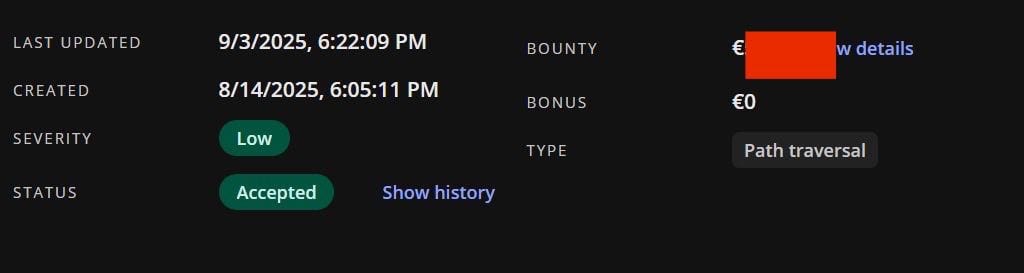

I responsibly disclosed the finding and received a bounty for the report.Alhamdulillah €€

Press enter or click to view image in full size

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*xva3WS0wdamz65t9uFvuSQ.jpeg" alt="" height="187" width="700"><figcaption></figcaption></figure>

> Excited to announce that Khoof will soon be sharing alternative approaches to CVE discovery and vulnerability research best practices.

<figure><img src="https://miro.medium.com/v2/resize:fit:1050/1*hJA5eQGejkkspRCjNrpRLQ.png" alt="" height="394" width="700"><figcaption></figcaption></figure>

[LinkedIn](https://www.linkedin.com/in/abdelrahman-tamer-6a932924a/) | [X](https://x.com/A0xTrojan) | [Youtube](https://www.youtube.com/channel/UC7smGv7AAcXMY5rrCpP5t8A) | [Facebook](https://www.facebook.com/abdo.tamer.313)

Follow me on Social Media :

Thank you for you time reading my writeup and i will publish the next Vulnerability soon :) and hope from you to share, like and support my Writeups :) stay safe
